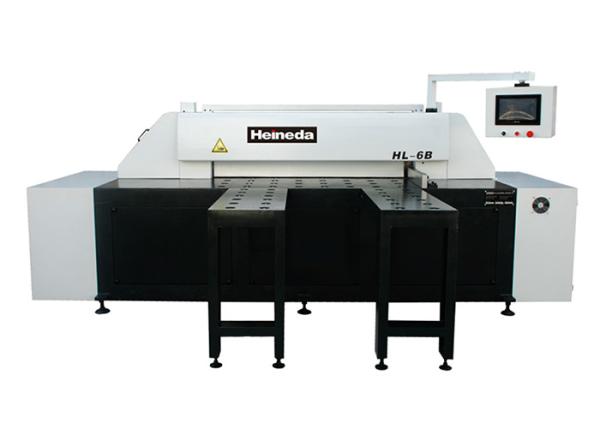

HL-6B Semi - Automatic Aluminum Saw Cutting Machine For Sheet Metal Cutting
Description
Machine Terminal: Semi-automatic plate sawing machine
Model: HL-6B semi-automated aluminum saw cutting machine
▲ HL represents the model of Aluminum plate sawing machine in Heineda.
▲ 6 represents the size of the aluminum saw cutting machine, 6 can be sawed 1600 mm.
▲ B represents the head of this model.
This apparatus can be applied to the sawing of aluminum plates, copper plates, composite panels, plastic plates, and the like.
One. Technical specifications and parameters:
Six advantages of product stability guarantee
1. Product Design
2. Team R&D
3. Manufacturing
4. Performance test
5. Factory self-inspection
6. After-sales service
Technical specifications and parameters
| model | HL-6B | |
| efficacy | Crop width | 1600mm |
| Maximum cutting height | 120mm | |
| Maximum saw blade exposed height | 125mm | |
| Main saw motor | 15kw | |
| Strip | Strip diameter | Ø550mm |
| Main saw shaft diameter | Ø 38mm | |
| Spindle speed | 4000 r / min | |
| Sawing | Walking inverter motor | 1.5kw |
| Automatic scale (optional) | Servo fixtler motor | 0.75kw |
| Fixed length | 1500mm | |
| Air pressure | ≥5.0 kg / cm2 | |
| Workbench height | 1130 mm | |
| Machine tool shape (length × width × height) | 4040mm × 4710mm × 1700mm | |
| Voltage | 380V | |
| hertz | 50Hz | |
| weight | 2400 kg | |
The above specifications are not notified if there is any change
2. Mechanical characteristics:
(1) This machine is composed of the following major components
a. Equipment main B. Air floating feeding device C. Overall crimping system
d. Automatic fixing device E. Touch screen | Control panel F. Cooling system
(2). Main component structure and other
a. Equipment main body
The equipment main body consists of four parts: the main frame, a lifted mechanism, a head walking mechanism, a saw blade clamping mechanism.
(I) host
The main frame adopts a welding process and is soldered after returning.
(II) can be lifted
The head lift is designed with the left and right parallel double slide rails. It can take the tab of the display of different thicknesses to meet the sawing needs of different thicknesses in the sawing display. While implementing material saw, there is also a resource, which increases the service life of the saw blade.
(III) Machine head mechanism
The variable frequency reducing motor driven by the head traveling mechanism, the gear rack drive, and combines the left and right parallel double slide rails, effectively reduces the head inertia of the head, enhances the smooth performance of the giant seat, and effectively reduces the shot of the mobile. Reach the best cut straight precision. The top speed of the trip can reach 9 m / min, and the retreat can reach 17 m / min.
(IV) saw blade clamping mechanism
The double flange is used in conjunction with the nut, and the nut is tightened to tighten the nut, lock the saw blade, which is convenient and fast.
b. Air floating feeding device
The air floating feeding device consists of two parts: gas flotter worksheet and air floating floating workbench, including two air floating floating workbenchs. The floating workbench and the main workbench have been used to reduce the friction of the material and the material to reduce the operation of the operator's moving sheet and increase productivity. Floating balls have two options for stainless steel and Teflon.
C. Overall crimping system
With bicycle pressure, the integral piezoelectric cover form is operated, the air pressure is placed on the upper surface of the upper press, the aluminum sheet material is placed on the countertop, while ensuring the synchronous piezoelectric, also makes the small sheet sheet saw the piezoelectric material. The role of the overall crimping is good, and the noise is reduced.
The safety of the entire sawing process is also advantageous to equip the central chip apparatus, centralized treatment of sawing.
d. Automatic fixing device
Using an automatic pair device, fit the servo motor, which is convenient for the ruler. If the blade sawing process is performed, as long as the fixing device can be adjusted, there is no need to cut the knife to cut the knife through the operator, and increase production efficiency.
e. Touch screen | Control panel
Electrical system adopts control panel and touch screen design, easy to operate, high efficiency. Control the switch button and the emergency stop button on the control panel to facilitate the operation of the operator. All control buttons are intuitive in touch screens, can be performed through the function buttons in the touch screen, and this machine also uses a workstation design, select the workstation in the touch screen, as long as you set the sawing of a batch sheet Length and sawing, next to the sheet, then press the run on the touch screen. The position of the sawing is only in the position of the sheet length, which not only decreases the sawing cycle, but also improves the sawing efficiency of the batch sheet.
f. Cooling System
It uses vegetable cutting oil, energy-saving and environmentally friendly, forced oil by cooling system, and oil mist cooling, cooling effect.
| Saw host | 1 set | |
| Automatic fixing | 1 set | |
| Ground screw and pad | 1 set | |
| Air floating workbench | 2 | |
| Spare parts | A batch (see box) | |
| On-site installation | Need to provide lifting equipment and common tools, supplier guidance installation, need to assist | |
| On-site debugging | Supplier guidance | |
| On-site training | Suppliers are responsible for equipment operation, electrical principles, etc. necessary maintenance technical training | |
| On-site acceptance | Both parties are responsible | |
| Technical data (delivery with equipment) | Operating instructions | 1 copy |
| Equipment base chart | 1 copy | |
| Packing List | 1 copy | |
