    industrial CNC Metal Saw Thickness 150mm

    Ask Lasest Price
    Brand Name : HEINEDA
    Model Number : HX - 4015
    Price : Negotiable
    Supply Ability : 10 sets per month
    Delivery Time : 6-8 workdays
    • Product Details
    • Company Profile

    industrial CNC Metal Saw Thickness 150mm

    HX-4015 Automatic Aluminum Profile Sawing Thickness 150mm Width 400mm

    Description
    Model: HX-4015(Automatic aluminum type material sawing machine)
    ▲ HX represents the model of Heineda Company's automatic aluminum plate sawing machine.
    ▲ 4015 represents the size of the cutting aluminum profile size, 4015 sawing ability: width 400mm, thickness 150mm.
    Six advantages of product stability guarantee
    1. Product Design
    2. Team R&D
    3. Manufacturing
    4. Performance test
    5. Factory self-inspection
    6. After-sales service


    Technical specifications and parameters

    ModelHX-4015
    Servo drive systemServo motor + ball screw
    Sawing ability
    H x W200 x200mm, 175 x210mm, 130 x350mm, 20x400mm depends on the size of the saw blade
    Such as sawing ability chart
    Automatic feeding stroke1300mm can be reversed feed
    Automatic feeding accuracy±0.1mm
    Saw blade spindle speed1500-3500R.P.M. stepless speed change (can be set according to the actual saw blade size)
    Saw blade spindle motor10 HP
    Servo feed motor1.0 KW
    Servo feeding motor2.0kw
    Touch screen1O"
    Saw blade size12", 14", 16", 18", 20", 22", 24" (1" aperture)
    Air pressure4-6kgs / cm²
    Mechanical Dimensions3420 x 2230 x 1770 mm
    Packing size3750 x 2380 x 2170 mm

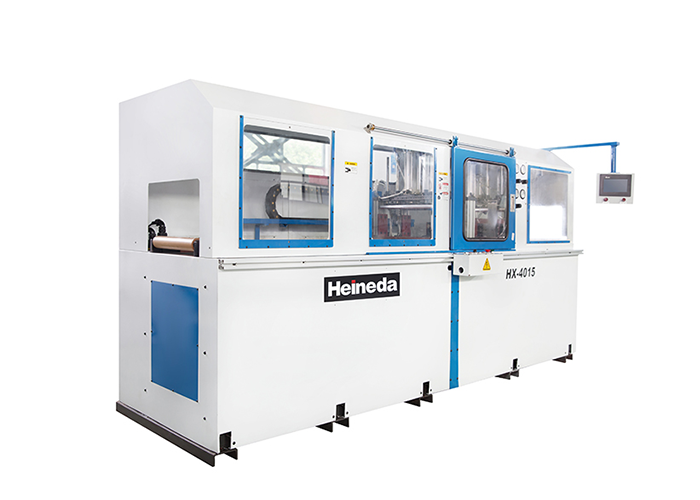

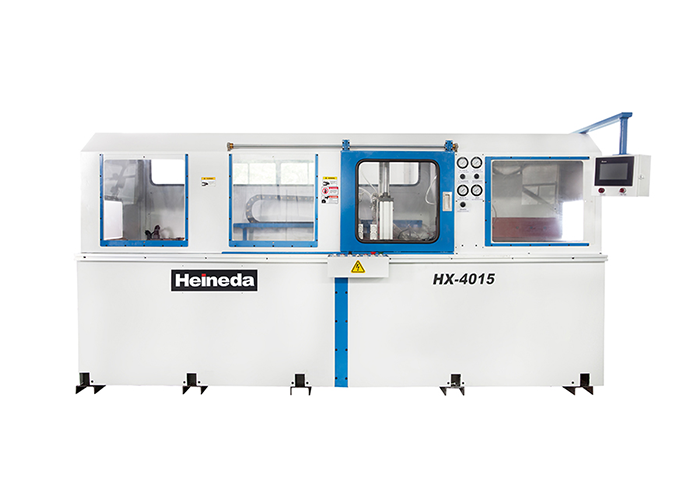

    Product display




    FAQ
    Q: Are you manufacturer ?
    A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.

    Q: Can I get a machine according to my own requirements?
    A: Sure.We accept OEM and ODM.
    Q: This is the first time I use this kind of machine, is it easy operate?
    A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

    If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
