CNC Sawing Machine Fully Automatic Horizontal Band Metal Band Sawing Machine
Description
This sawing machine is fully automatic control, touch screen
operation, simple, convenient and high precision. It is suitable
for batch processing. After selecting appropriate parameters to
adjust different speeds, it can cut various soft and hard black or
non-ferrous metal materials. It is an efficient and energy-saving
tool for various processing enterprises. Ideal cutting equipment.
This product has linear guide rail feeding, double vise clamping,
grating ruler CNC positioning, accurate size, reliable performance,
touch screen operation, and beautiful appearance.
Model: A-430TEC automatic high-speed horizontal belt
▲ A represents Heineda Company fully automatic high-speed horizontal belt saw bed model
▲ 430 represents sawing capacity: 400mm * 400mm;
▲ TEC represents this aluminum ingot (rod) saw cutting machine for automatic high speed model
▲ Can be used for test tabs of medium thick plates
Technical specifications and parameters
| Model | Fully automatic high speed horizontal band saw A-430tec |
| Sawing ability: | Width 400mm, height 400mm |
| Saw belt linear speed: 500～2500 m/min | (Frequency conversion stepless speed regulation) |
| Sawing method: | Up and down vertical sawing |
| Saw band tension mode: | Independent hydraulic tensioning/relaxing |
| Sawing feed rate | 0～3000 mm/min |
| Feed drive | Servo motor + ball screw drive |
| Cutting rate | 500～2500cm2/min |
| Diameter of pulley | ￠780 aluminum alloy 2 wheels |
| Saw band specifications | 8250L×34W×1.1t (Carbide saw band) |
| Saw blade life | ≤200㎡ |
| Main motor power | 45kW, frequency conversion motor |
| Repetitive positioning accuracy of servo feeding mechanism | ±0.05mm |
| Saw cut width | ≤2 mm |
| Saw cutting end face perpendicularity | ≤0.1mm/100mm |
| Roughness of sawing section | Ra ≤ 30 um |
| Sawing cooling method | Pulse type micro lubrication |
| Unit operating noise | ≤ 85 dB (measured at 1 meter away from the soundproof enclosure) |
| Total power of the unit | About 50 Kw |
| Height of operation center | 850mm |
| Clamping method | Two sets of clamps, fixed clamps and floating clamps are used to cooperate |
| Sawing drive (saw belt feed) | 3KW (servo motor, ball screw) |
| Hydraulic system pressure | 7Mpa |
| Φ203 bar single sawing time | 22S |
| Φ254 bar single sawing time | 26S |
| Φ330 bar single sawing time | 32S |
| Sawing length error | ≤1mm |

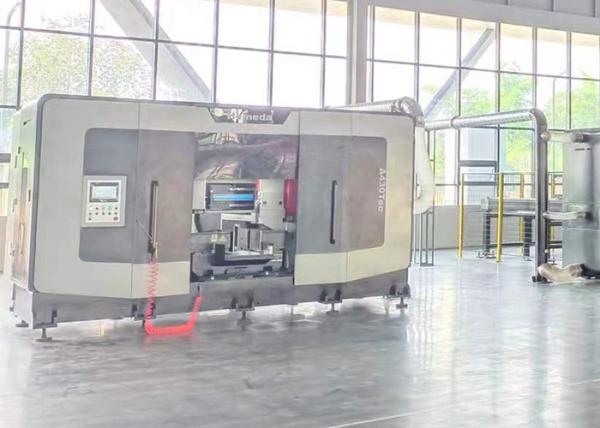

Product display
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a
competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy
operate?
A: There are guide video that show how to use machine and english
instruction book send to you with machine. If there is still have
any question, we will provide free professinal guide for you until
you could use machine well.
